Alignment & Corrective Actions

At MFS, we provide precision alignment checks and corrective services for both aeroderivative and heavy‑duty gas turbines, using the latest laser alignment technology and traditional dial‑indicator techniques, as required by specific applications.

Why Alignment Matters

Even minute misalignment within a shaft train can significantly impact reliability and efficiency. Proper alignment directly affects:

Bearing life: Reducing premature failures

Coupling wear: Minimizing mechanical stress

Vibration & noise levels: Enhancing operational comfort and safety

Product quality: Especially critical when driven equipment affects final output

Alignment — High Precision

We use state-of-the-art laser tools that deliver high level accuracy, detecting even the smallest tolerance deviation.
Laser alignment is fast, repeatable, and ideal for complex shaft trains including gearboxes, turbines, generators, compressors, and auxiliaries. Systems provide automated measurement, thermal growth compensation, real-time feedback, and detailed documented reporting.

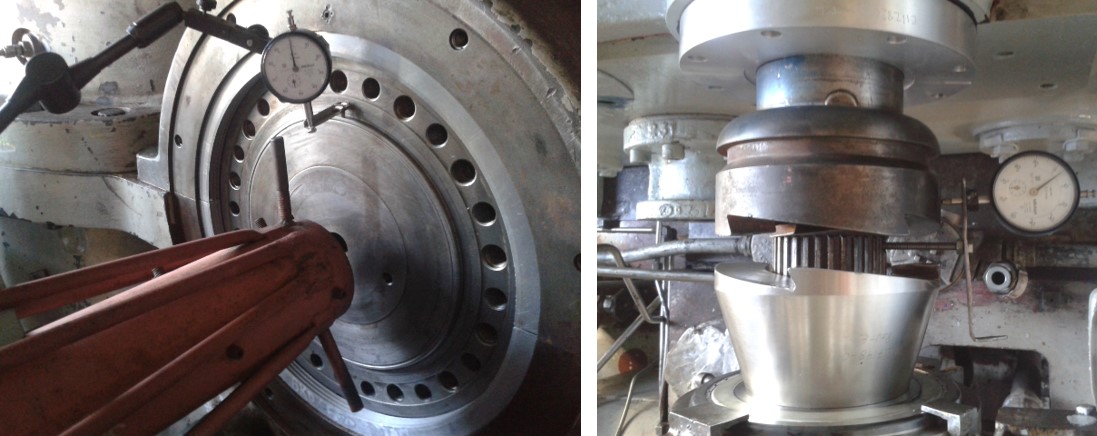

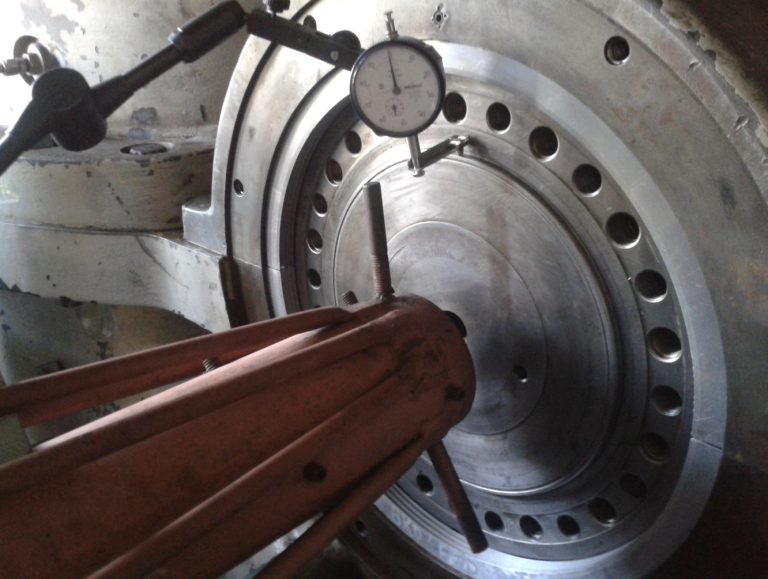

In cases where OEM or local standards prefer dial indicator techniques or require it, our engineers also control dial indicators (rim-and-face measurement) for alignment checks. This traditional method remains precise and robust when expertly applied.

Typical Alignment & Correction Workflow

Step	Activity Description
Planning & Setup	Secure machine, mount laser hardware or dial gauges, account for thermal growth and axial position
Initial Measurement	Capture baseline data across bearing points/shafts
Correction Actions	Shim or reposition machine units to meet tolerances
Verification Check	Final measurement to confirm alignment within accepted range
Reporting	Provide detailed alignment report—before and after correction

Why Choose MFS for Alignment Services?

Expertise: Over 20 years of global service in turbine alignment and maintenance
24/7 Availability: Field engineers available worldwide for immediate response
Dual-method capability: Skilled in both laser and dial indicator techniques to match project requirements
Comprehensive scope: Alignment checks include turbine, gearbox, generator, and connected auxiliaries, verified prior to commissioning
Full documentation: Deliver post-alignment reports documenting tolerance compliance and adjustments made

Let MFS bring precision back to your turbine operations. With expert alignment services using laser and traditional methods, we ensure your gas turbine and its associated systems run smoothly, safely, and efficiently.
